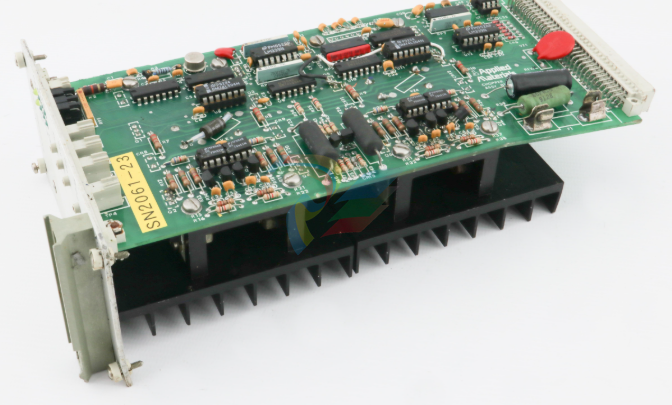

AMAT 0100-00011 PWM (Chopper) Constant Current Drive
AMAT 0100-00011 is a specialized Chopper Drive PWB (Printed Wiring Board) Assembly, primarily manufactured for Applied Materials by RadiSys or third-party electronics partners.
This board is a legacy motion control component used in 200mm semiconductor fabrication tools,
specifically designed to drive bipolar stepper motors with high efficiency and minimal heat dissipation using “chopper” (Pulse Width Modulation) current control.
Technical Parameter Table
| Parameter | Specification |
| Manufacturer | Applied Materials (AMAT) |
| Part Number | 0100-00011 |
| Board Name | Chopper Drive PWB / Chopper Driver Board |
| Drive Architecture | PWM (Chopper) Constant Current Drive |
| Compatible Platform | AMAT Precision 5000 (P5000), Centura 200mm |
| Weight | Approx. 1.03 kg (2.27 lbs) |
| Bus Interface | VMEbus / Proprietary Backplane |
| Status Indicators | Onboard Diagnostic LEDs (Power/Fault) |
| Standard Revision | Rev 001 / Rev 002 |
Related Models
The 0100-00011 is often found in the same VME rack as other essential 200mm control boards:
0100-00003: B-Size VME Stepper Drive Controller.
0100-09139: Robot Extension / Sensor Interconnect PCB.
0100-76124: Digital I/O Control Board.
0100-01130: CCD/Sensor Interface Board.
Application Cases
This chopper drive board is critical for high-torque, precise movement in legacy “Mainframe” tools:
P5000 / Centura Mainframes: Controlling the heavy-duty stepper motors used for wafer transfer robots and susceptor lift assemblies.
Slit Valve Actuation: Managing the opening and closing of isolation valves between the transfer chamber and process chambers.
Load Lock Mechanism: Driving the vertical lift pins and substrate positioning arms where smooth, vibration-free motion is required to avoid wafer “sliding.”
Product Advantages and Features
Heat Management: “Chopper” technology allows the board to provide high current for torque while switching rapidly to reduce energy loss as heat—crucial for enclosed electronics towers.
Robust Torque Control: Maintains constant current to stepper motors regardless of input voltage fluctuations, ensuring consistent robotic speed and force.
Long-Term Reliability: Designed for “always-on” fab environments; its simple, rugged analog-to-digital interface is less prone to the software glitches found in modern integrated drives.
High Efficiency: Maximizes motor performance even in older tools, extending the life of the mechanical drive train.
Other Models in the Same Series
0100-00xxx Series: This series contains the core VME-era power and motion boards used throughout the 1990s and early 2000s in Applied Materials 200mm equipment.
0190-08232: A later-generation motion controller module often used as an upgrade path for systems transitioning away from legacy chopper boards.
Installation and Maintenance
Installation: Power off the mainframe before insertion. Ensure the board is firmly seated in the VME slot and the locking tabs are engaged. Warning: Improper seating can cause an electrical arc that damages the backplane.
Maintenance: Regularly inspect the capacitors for bulging or leakage, which is a common failure point for boards of this vintage. Dust accumulation on the heat sinks should be removed to prevent thermal failure.
Troubleshooting: If the robot exhibits “jerky” motion or fails to move despite power being present, the chopper circuit on the 0100-00011 may be failing to maintain constant current.
Unique Product Description
The AMAT 0100-00011 is the “workhorse” of the 200mm era. While contemporary tools utilize integrated servo systems,
the 0100-00011 provides the raw power and precise current chopping required to move heavy mechanical assemblies with sub-millimeter accuracy.
It remains a high-demand spare part for fabs that continue to run high-reliability P5000 and Centura fleets for power semiconductors and MEMS production.
