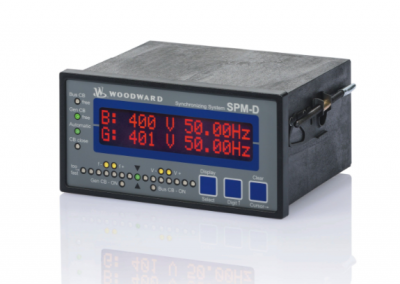

Woodward SPM-D2-1010B /110VAC sensing 8440-2166

Product number: 8440-2166

Manufacturer product number: 8440-2166

Description: Woodward: SPM-D2-1010B, Synchronizer, auxilary voltage: 9.5…32 VDC, voltage primary: 100 VAC

Predecessor: 5448-890

Woodward understands the time-intensive nature of Power Generation projects. Ensuring the lon

gevity of components is one way we can make our customers successful. Woodward has supplied

and supported the well-established SPM-D line of synchronizers for 20+ years. With the state of

the art Drop-In replacement successor, SPM-D2 the life of this synchronizer line is now extended.

All of the SPM-D2 synchronizers are password protected and are configurable either through HMI

as before or through ToolKit configuration tool with USB connectivity.

The SPM-D2-10 series are microprocessor-based synchronizers designed for use on two or three

phase AC generators equipped with Woodward or other compatible speed controls and automatic

voltage regulators. The SPM-D2-10 synchronizers provide automatic frequency, phase and voltage

matching using either analog- or discrete output bias signals. These synchronizers are applied to a

wide range of prime movers and generators, as its control signals may be set to fit several types of

gensets – from fast reacting diesel engines to soft reacting gas turbines.

The SPM-D2-10 synchronizers are available in 3 base models:

 SPM-D2-10 … : provides 1-phase / 2-wire voltage measurement with options for analog and/or

discrete biasing signals and wide range power supply

 SPM-D2-10 …/YB: provides 3-phase / 4-wire voltage measurement with discrete biasing signals

and option for wide range power supply

 SPM-D2-10 …/PSY5: provides 1-phase / 2-wire voltage measurement with discrete biasing sig

nals, option for wide range power supply and 2 sets of switchable parameter set.

Phase match or slip frequency synchronization with voltage matching

Two-Phase or three-phase true RMS voltage sensing of generator and bus with Class I accuracy

Selectable operating modes like SPM-A (Run, Check, Permissive and Off)

Synch-Check and synchronization time monitoring

8440-2166

Dead bus closing of CB on demand

2 setting blocks, each containing 7 configurable parameters (in PSY5 variants) selectable

through DI: Frequency/Voltage control dead-band, Frequency/Voltage control time pulse, Fre

quency/Voltage control gain, Circuit breaker time compensation

Control outputs: Discrete raise/lower for speed and voltage in all variants, | X and XN variants:

also configurable analog signals (Voltage, Current and PWM)

Voltage and frequency control in isolated operation

Two line bright liquid crystal display for operation, alarm, measuring values visualization and

parametrization

Front face with synchronoscope and indication of breaker state/control activity

Multi-level password protection of parameters

Woodward ToolKit™ software for configuration via USB

Two built-in languages: English, German
