GE 531X305NTBANG1 General Electric Terminal Board

531X305NTBANG1 General Electric Terminal Board

About the 531X305NTBANG1

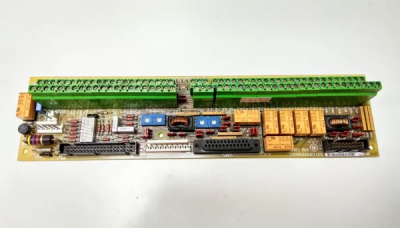

The 531X305NTBANG1 is an NTB/3TB terminal board manufactured by General Electric.

It belongs to the 531X series of replacement drive and exciter boards.

This board provides a range of interfacing system features, including relay and serial outputs, analog I/O, power supplies, and encoders.

Functional Capabilities

531X305NTBANG1

When installed, it can produce both regulated and unregulated power supplies:

Regulated supplies: 5 VDC and 15 VDC.

Unregulated supplies: 24 VDC or 125 VAC.

Encoders rated at 5 V and 15 V can be configured using onboard jumpers.

Includes seven relay outputs (Form A or Form C outputs).

Contacts within each relay are rated at 120 VAC.

Low-level analog I/O can be scaled using the four onboard potentiometers.

531X305NTBANG1 Technical Specifications

Manufacturer     General Electric

Series    531x Series

Part Number    531X305NTBANG1

Weight    1 lb

Regulated Power Supplies    5 VDC and 15 VDC

Unregulated Power Supplies    24 VDC or 125 VAC
