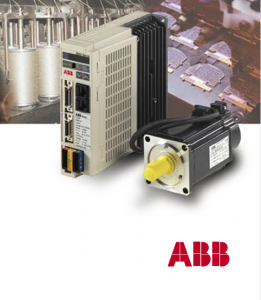

ABB New BSD Series A complete range

Anti-vibration filter

A complex algorithm (patent pen

ding) which reduces vibrations to

the minimum.

Autotuning

Easy and automatic tuning of

the drive. A piece of cake!

Integrated brake chopper

Encoder from 131,072 pulses/turn:

great accuracy

Encoder at 8192 pulses

10 r/min

Encoder at 131,072 pulses

10 r/min

10 ms

BSD Configurator

Easy and straightforward sof

tware for servo drive control with

digitizing oscilloscope function.

Special input for torque

control

To make electric screwdrivers,

unwinders, test machines, etc.

BSD

• Jog Function through keyboard: useful to test the wiring

and mechanical coupling

• Notch filter for the elimination of resonances.

• Side by side mounting: no mandatory space between the

drives (size1)

• Possible pulse train command: technology shift from

step-by-step to brushless motor

• Power and electronic supplies are separated

•  Compliant with CE, UL, cUL and Rhos
