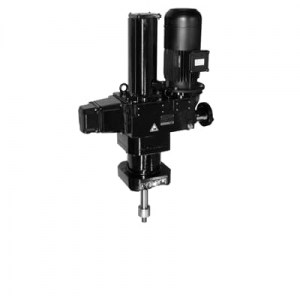

Electrical linear actuator RSD50 (Contrac)

Electrical linear actuator

RSD50 (Contrac)

Compact actuator for the operation of final control elements with preferably linear movement. For continuous positioning, rated force 50 kN (11240 lbf). The actuator thrust rod transfers the force directly to the final control element.

Overview

General specifications:

Electrical actuator for continuous positioning or step control

Stallproof without the need of position or torque dependent switch-off

Three-phase asynchronous motor

Sturdy gear unit with highly efficient design

Internal rotary – linear conversion

Hand wheel for emergency operation

Integrated sensors for position and temperature

Signal and power input only via separate, microprocessor-controlled electronic unit

Find out more about the electronic units:

Field installation

– Medium power range EBN853

– High power range EBN861

Mounting rack installation

– Medium power range EBS852

– High power range EBS862
