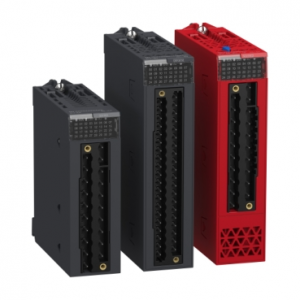

Schneider Modicon X80 modules

Modicon X80 modules

The common platform for Quantum Ethernet I/O, M340 PAC, and M580 ePACs

Part of Modicon

All modules with X80 form factor: backplane, power supply, I/O digital, I/O analog, communication, expert, etc.

About Modicon X80 modules range

Modicon X80 modules are the common range for Modicon M580 and Modicon M340 platforms. The modules are used locally in the local rack of Modicon M340 or Modicon M580. and can also be used in an X80 remote rack (Drop) in an Ethernet IO architecture on Modicon M580 or Modicon Quantum

Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe, and secure architecture.

EcoStruxure™ Control Expert(formerly known as “Unity Pro”) is the common programming and configuration software for all X80 modules.

Reduce time to market

Reduce time to profit – e.g. save up to 3 weeks on a 3 month project resulting in $2 million of extra production at launch.

Process efficiency

Improve process efficiency through 5X faster scan time, and gain up to US $2 million annually for a typical high volume manufacturing plant with the latest processing technologies.

Process safety

The Modicon M580 Safety Controller is the only PAC in the marketplace that can offer 100% ROI within three months of implementation.

Easy maintenance

Modicon X80 modules support more than the standard requirement for robustness even in a severe environment with a solid construction, compliant to international standards, and marine certifications.
